Manufacturing Facilities
You are welcome for visit to look in our tool manufacturing facilities. We have in house manufacturing capabilities to complete almost all type of sheet metal cutting dies and jigs and fixtures. We are out sourced specialized services for CNC milling, EDM wire cut, Die sets, Jig , Fixtures . We are using latest software's for design process. Our tool room is fully equipped with latest new machineries and measuring instruments.

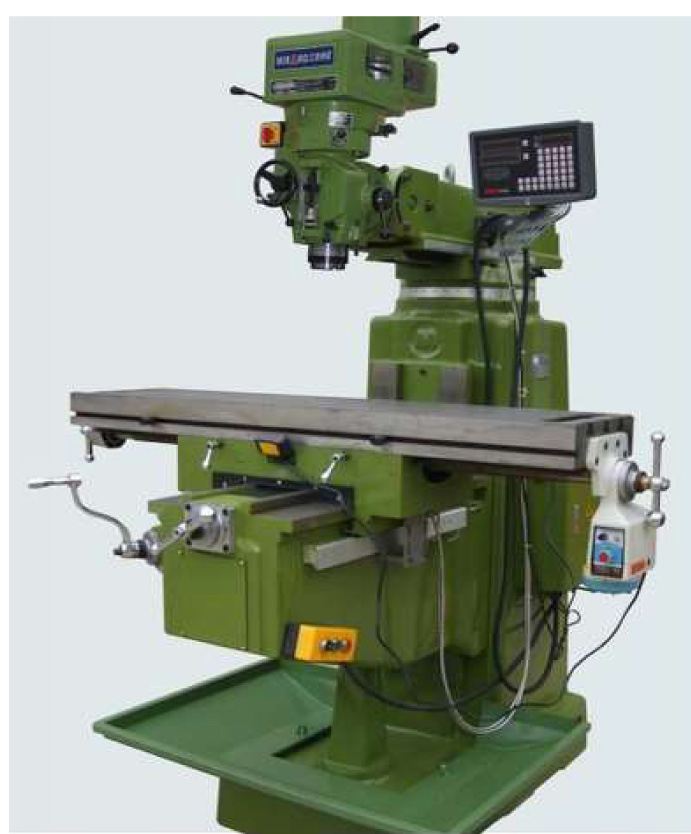

JIG BORING MACHINE
- BED SIZE : 1250MM X 250MM
- MAKE : E STAR ( TAIWAN )
- LONGITUDINAL TRAVEL : 850MM
- CROSS TRAVEL : 450MM
- VERTICAL TRAVEL : 600MVERTICAL 600MM

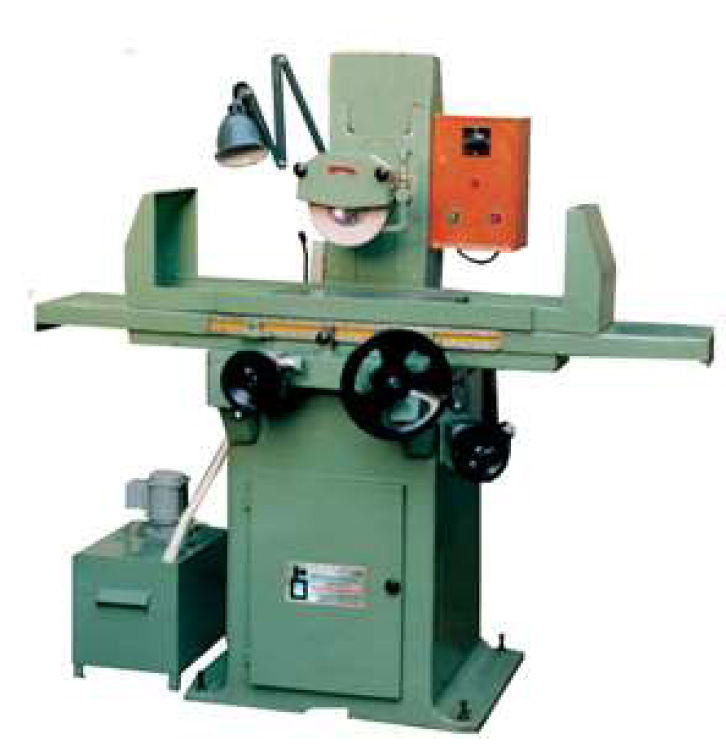

SURFACE GRINDING (HYDRAULIC)
- BED SIZE : 550MM X 250MM
- MAKE : MANDRA
- MAX.HEIGHT FROM BED
- TO GRINDING WHEEL : 220MM
- SPINDLE SPEED : 2800 RPM
- BED TYPE : MAGNETIC

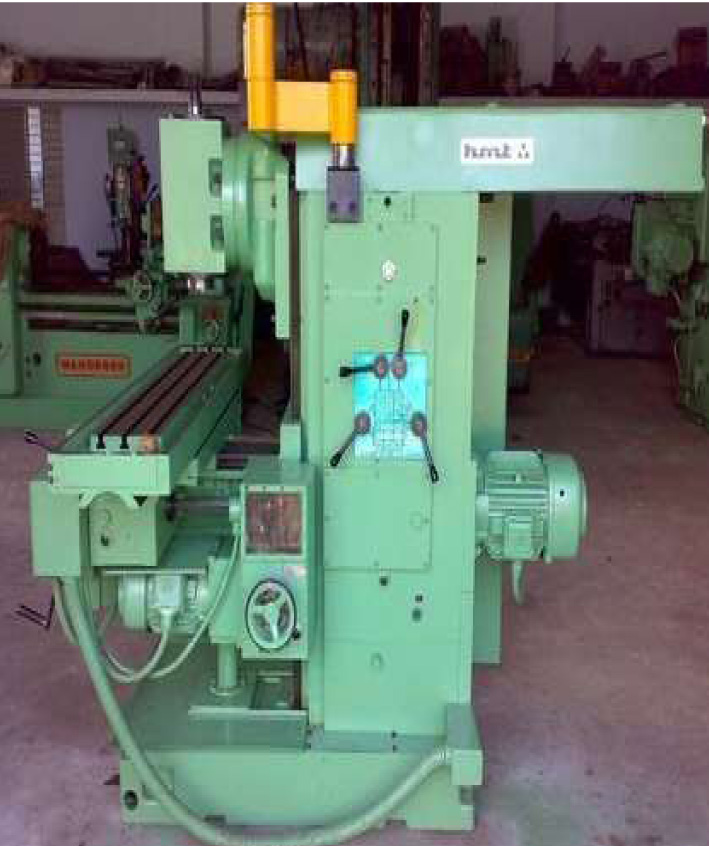

MILLING MACHINE (H&V)
- BED SIZE : 1520MM X 310MM
- MAKE : HMT
- LONGITUDINAL TRAVEL : 800MM
- CROSS TRAVEL : 265MM
- VERTICAL TRAVEL : 400MM
- MAX. WEIGHT OF THE TABLE : 350Kg
